Vertical Automatic Smart Car Parking 2300kg Tower Car Parking System
Operating principle

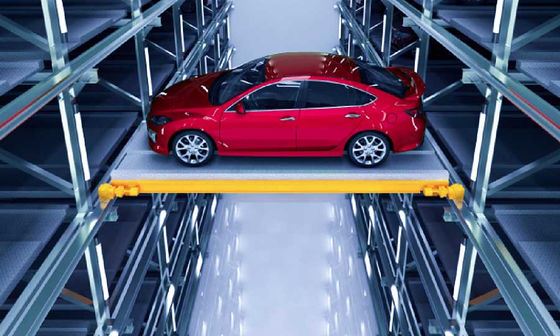

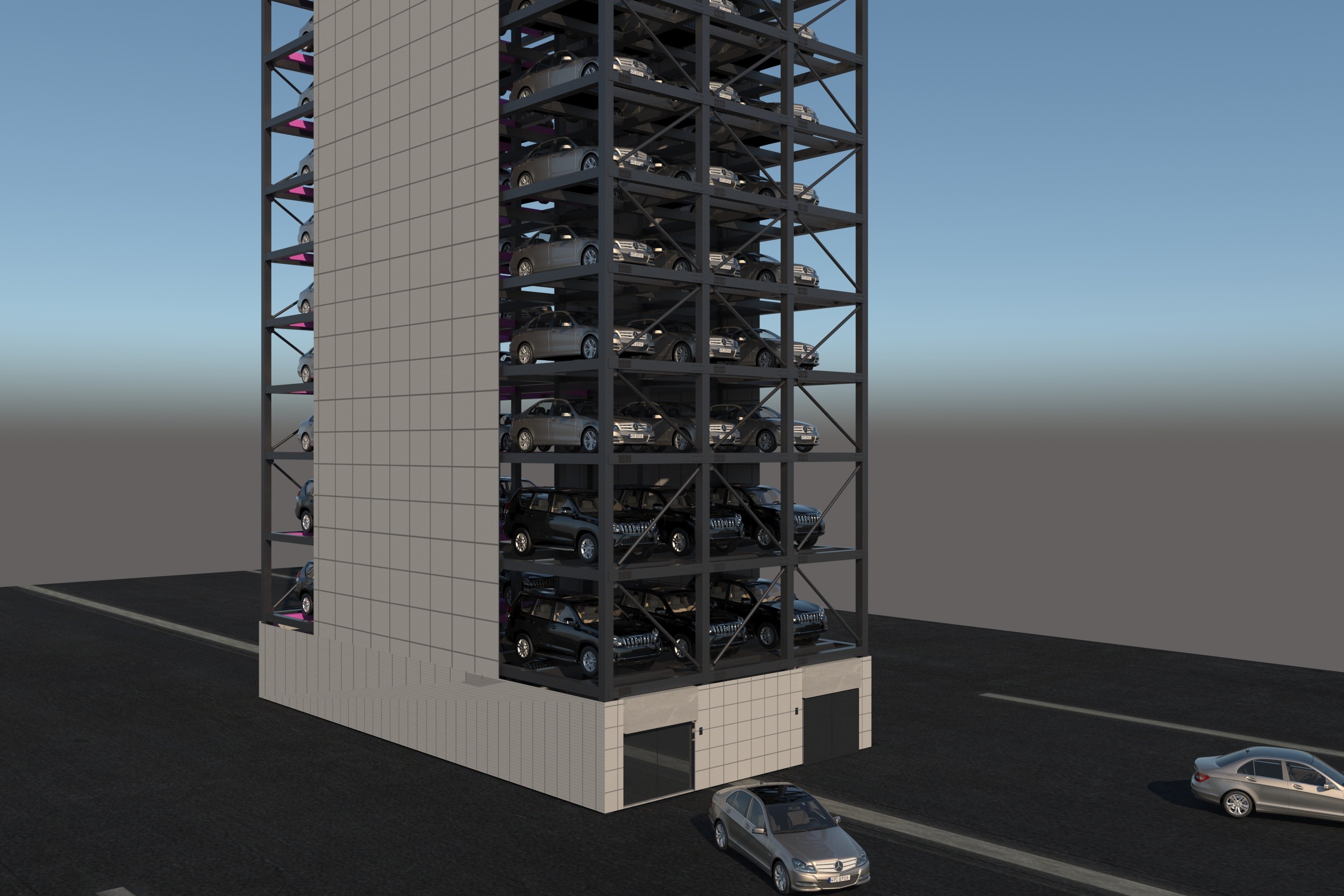

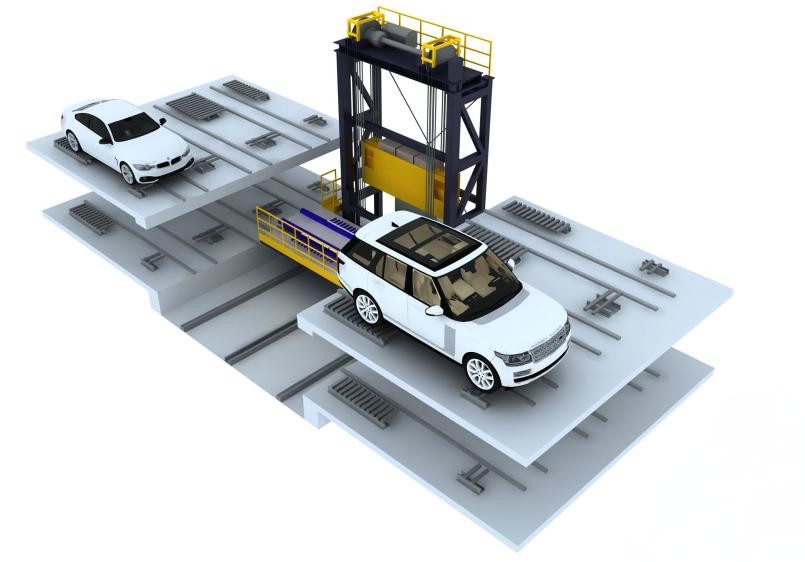

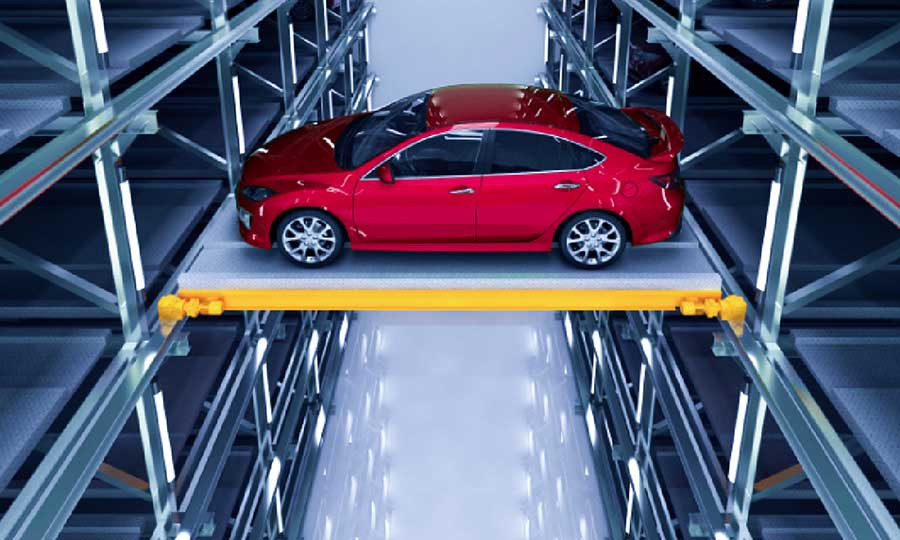

Through the vertical lifting of the elevator and the plane reciprocating movement of the porter, the vehicle is automatically transported to the parking area of the multi-layer arrangement, and the multi-plane mobile. Suitable for installation in large and medium-sized buildings or public facilities, according to the arrangement can be divided into vertical or horizontal layout.
peculiarity
1. Each layer of transporters and lifts operate separately and do not interfere with each other, which improves the speed of vehicle entry and exit
2, can make full use of underground space, parking scale can reach thousands of vehicles.
3, fully enclosed construction, good safety.
4, the use of frequency conversion speed regulation technology, smooth operation, accurate positioning.
5, set up multiple safety protection devices, excellent safety performance.
6, intelligent management is convenient and fast.
Technical parameters
| Mode | PPY-CDJ-1 | |
| Spaces | 80-120 vehicles | |
| Levels | <10 levels | |
|
Size of Car space |
Length | 5500mm |
| Width | 2500mm | |
| Height | 2000 (or) 2500mm | |
|
Parameters of capacity |
Length | 5300mm |
| Width | 1900mm | |
| Height | 1550(2050) mm | |
| Weight | 2300kg | |
|
Speed |
Lifting | 60~120 m/min |
| Transporting | 50~90 m/min | |
| Shifting | 40 m/min | |
|
Engine |
Lifting | 22~45kw |
| Transporting | 4~7.5 kw | |
| Shifting | 4 kw | |
|
Gateway |
Height | 2800 mm |
| Width | 2300 mm | |
| Power capacity | AC380V(3 phase 5 wires system)75KVA | |
| Operating mode |
IC card, touchscreen |
|
| Security messures |
Guiding instruction, emergency stop, ultrahigh and ultrahigh detection, camera surveillance, locating system, damping system |
|
