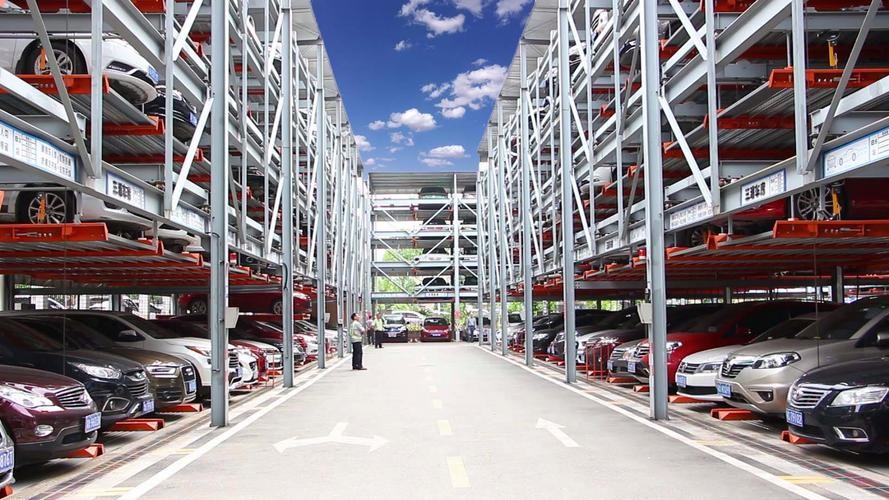

Highly Automated Puzzle Car Parking System for Fast and Convenient Vehicle Access

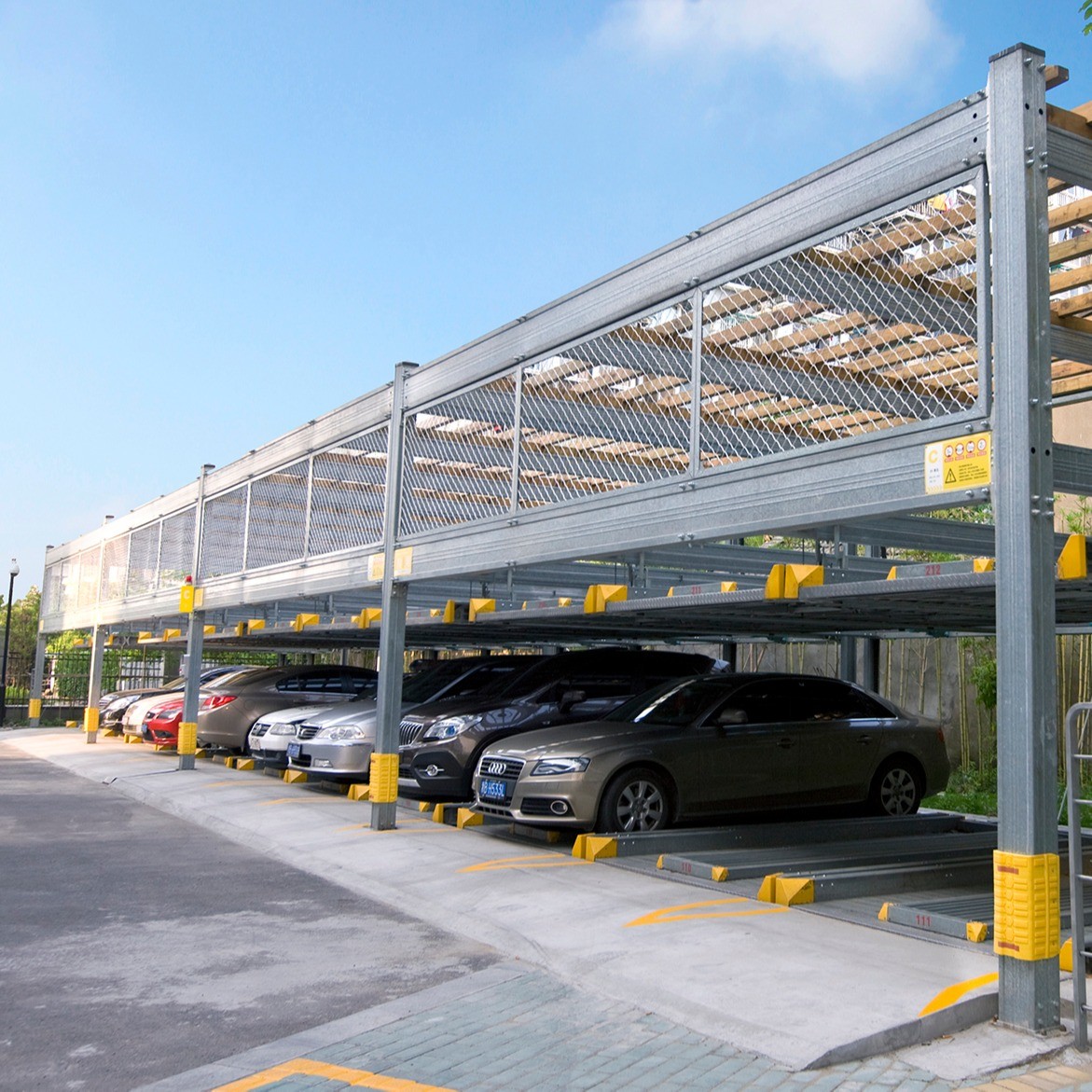

Operating principle
The vehicle can be accessed by lifting or traversing the vehicle plate, and the vehicle plate is provided in each parking space. The top load plate only does the lifting movement, the ground layer load plate only does the transverse movement, and the middle layer load plate can do the lifting movement and the transverse movement. There is an empty parking space in the middle layer and the ground layer respectively, and the empty parking space can be changed with the transverse movement of the vehicle plate. When accessing a vehicle in a parking space, a lifting channel is formed from below the parking space to above the empty parking space, so that the parking space can be freely lifted to the ground, so as to access the vehicle in the parking space.

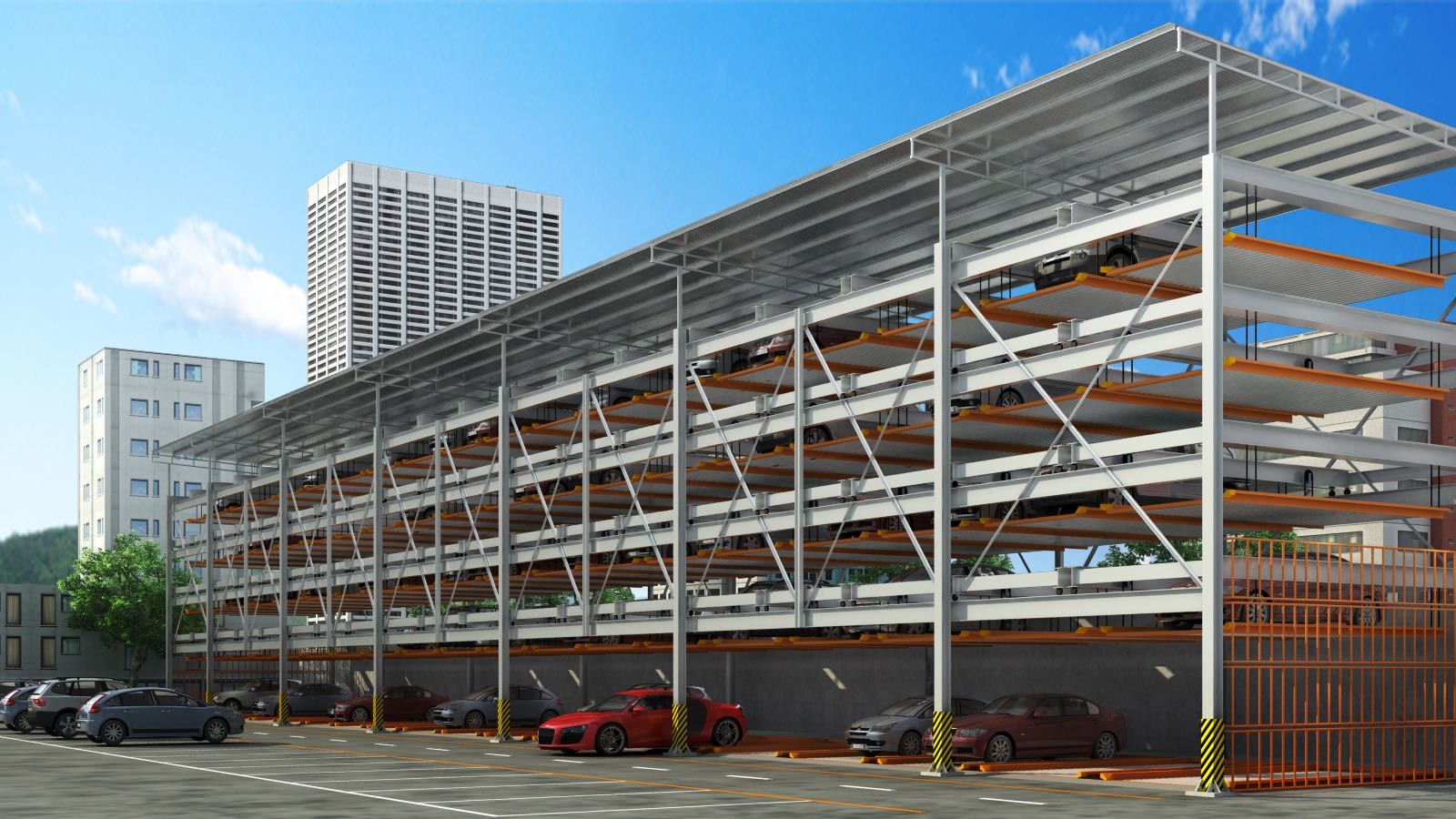

peculiarity
1, small footprint, high space utilization, modular installation, can be multi-unit combination, convenient and flexible, can meet a variety of different needs
2, access car fast and convenient, unique span beam design, vehicle access barrier-free.
3, PLC control, high degree of automation, simple operation, easy access to the car. Man-machine interface has good control, a variety of operating methods can be selected.
4, energy saving and environmental protection, low noise. Double the number of parking and save a lot of space.
5, simple structure design, smooth operation, safe and reliable;
6, equipped with electromagnetic anti-fall device, fully ensure vehicle safety; Photoelectric detection, control vehicle specifications and parking position, so that the vehicle orderly parking; The operation automatically stops when the personnel strays into the garage, increasing the safety factor of the garage;
7, equipped with emergency stop button, emergency stop in exceptional circumstances, to avoid external accidents;
8. The ground floor parking space is the same as the general flat garage parking space.
Technical parameters
|
Car space capacity size |
length×width×height (mm) |
5000mmX1850mmX1550mm | |
| Car weight (kg) | 2000kg | ||
| Speed | lifting (m/min) |
2-3 layer |
4-6 layer and above |
| 4 m/min | 6 m/min | ||
| shifting (m/min) | 8 m/min | ||
| Noise | ≤65db | ||
