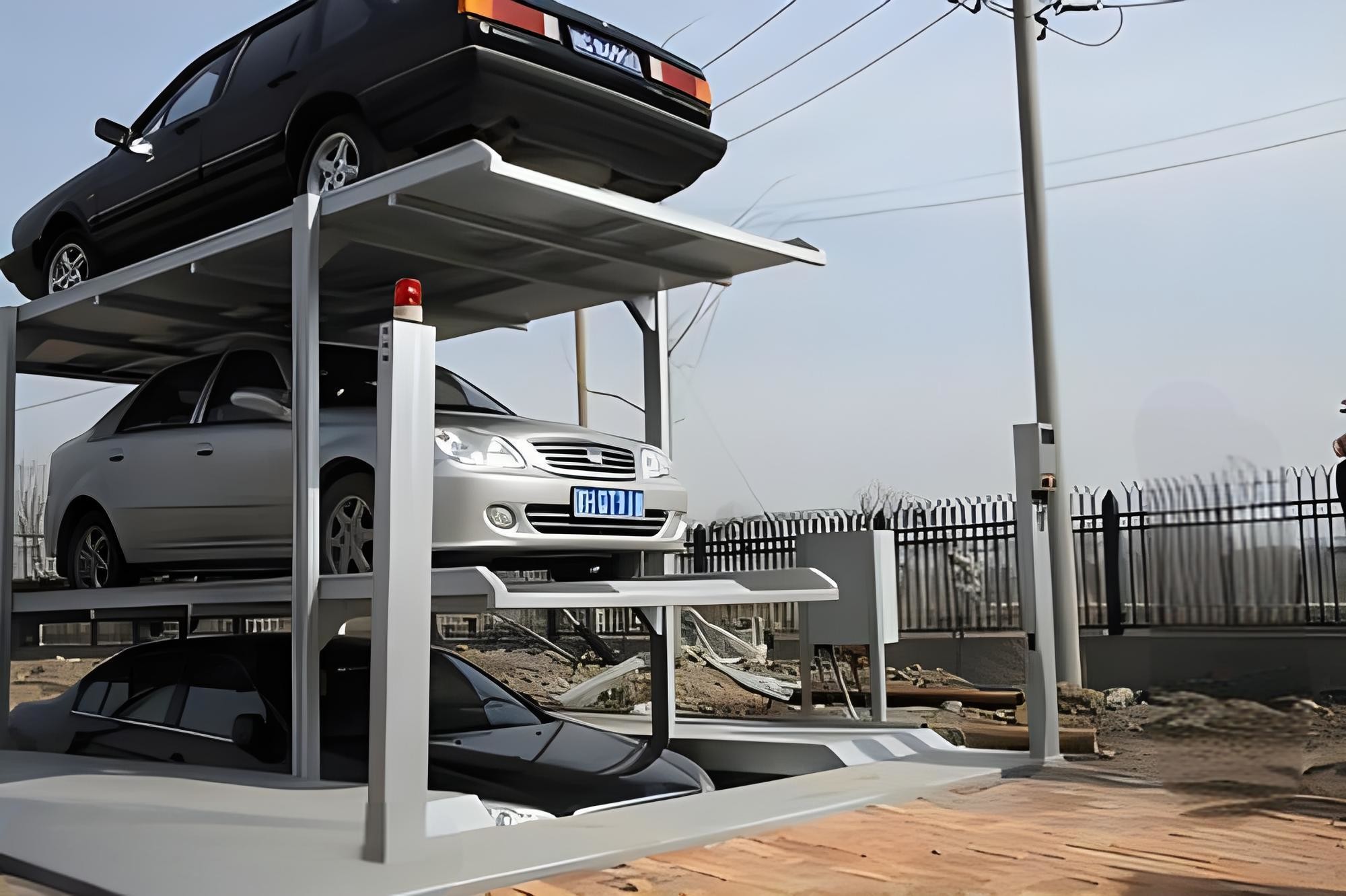

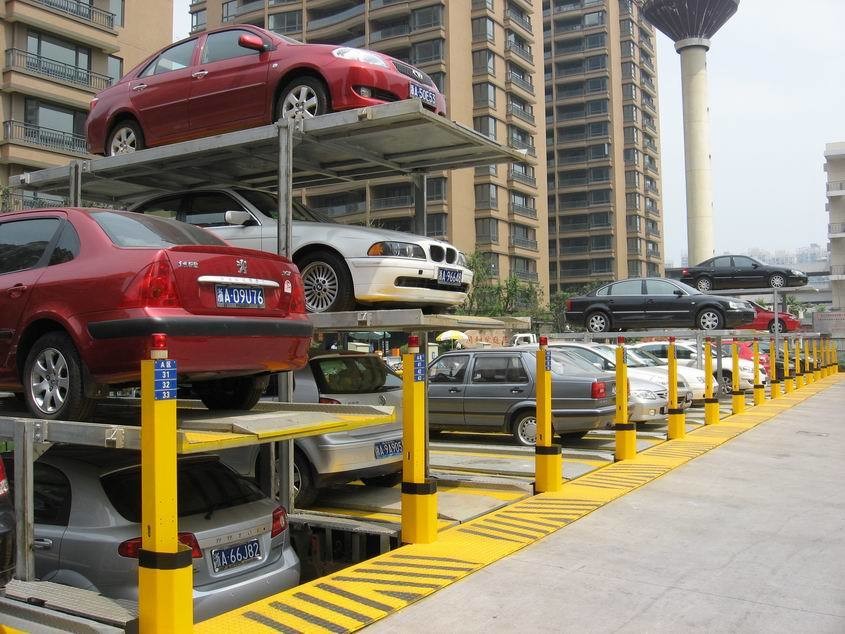

Pit type simple lifting
Operating principle:

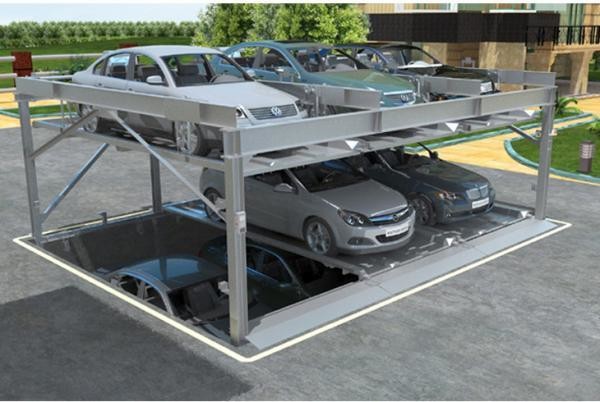

The mechanical parking equipment is divided into two layers, and the entrance and exit are on the 1F floor. Overall lifting of carriage frame. Usually, the lower and middle parking Spaces are sunk into the ground, and the upper parking Spaces are level with the ground. The upper parking Spaces can directly access the vehicles, and the middle and lower parking Spaces can access the vehicles after rising to the ground.
When accessing the vehicle, first issue instructions through the man-machine interface (digital keys, swipe cards), enter the parking number to be accessed, you can access the vehicle. Direct access to the ground layer, underground and middle layer equipment to the ground layer after the vehicle is stored in the corresponding position, users can access the vehicle.
Device drive mode: motor chain
Features:
1, the use of the overall load frame structure, the overall rise and fall, easy to use the garage
2. The longitudinal beam column is on a plane, the connection is tight, the structure is simple and stable, and the overall effect is beautiful.
| No | Item | Instruction |
| 1 | Car size (L × W × H) (mm) | 5000× 1850× 1550 |
| 2 | Maximum car capacity (kg) | 1700 |
| 3 | Frame construction | Columns and beams are H-shaped steel |
| 4 | Car plate composition | Galvanized corrugated plate assembly |
| 5 | Driving model | Motor + Chain |
| 6 | Operation model | Digital button + Swipe card |
| 7 | Column and beam surface coating | Shot blasting paint |
| 8 | Noise | < 65dB |
| 9 | Controller | PLC program control |
| 10 | Warning device | Yes |
| 11 | Elevating motor power | 3.7 KW |
| 12 | Lifting speed | 2.7 m/min |
| 13 | Transmission system safety factor | > 7 |
| 14 | Average access time | ≤60s |
| 15 | Power source | Three-phase five-wire AC380V 50Hz |
| 16 | Delivery time | 10 days |
